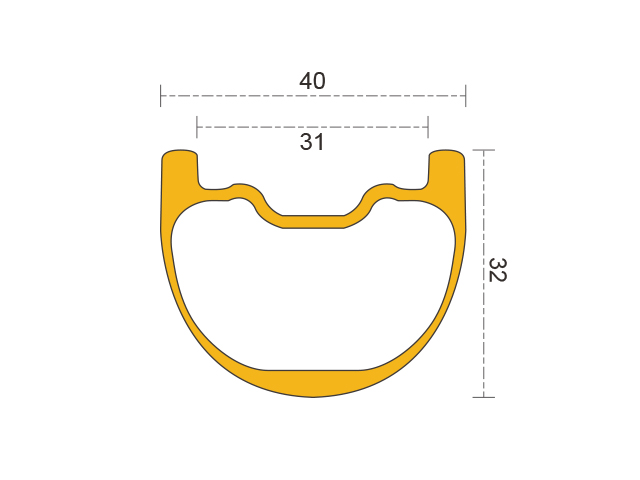

40mm external width, 31mm internal width combine with 32mm depth to create a lightweight rim capable of withstanding the challenges of trail riding while at the same time delivering Downhill Race performance.
M31
| Rim Specs | |
| Material | Toray T700 + T800 |
| External Width | 40mm |
| Inner Width | 31mm |
| Depth | 32mm |
| Rim Type | Clincher /Bead Hookless |
| Max Spoke Tension | 130kgf |
| Max Rider Weight | 120kg |
| Max Tire Pressure | 60psi |
| Application | Downhill |
| Tire Size | 2.3 - 3.1″ |
| 29" Specs | |
| Weight | 600 +/- 15g |
| ERD | 578mm ( Does not include the nipple ) |
| 27.5" Specs | |
| Weight | 570 +/- 15g |
| ERD | 540.5mm( Does not include the nipple ) |
| 26" Specs | |
| Weight | 550 +/- 15g |
| ERD | 515.5mm( Does not include the nipple ) |
