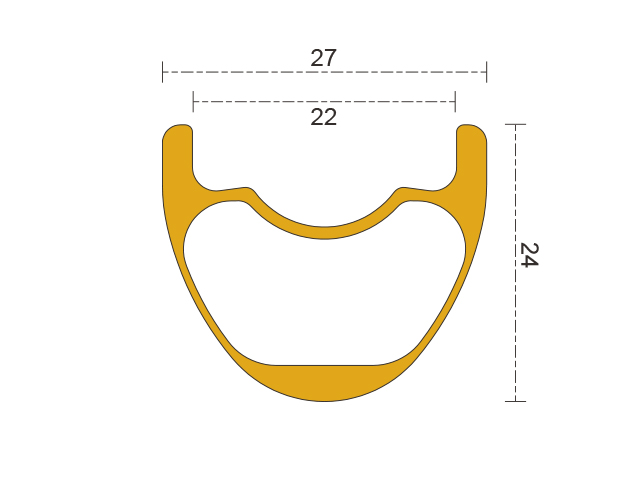

27mm external width, 22mm internal width combine with 24mm depth to create a lightweight rim capable of withstanding the challenges of trail riding while at the same time delivering XC Race performance.
M22
| Rim Specs | |
| Material | Toray T700 + T800 |
| External Width | 27mm |
| Inner Width | 22mm |
| Depth | 24mm |
| Rim Type | Clincher /Bead Hookless |
| Max Spoke Tension | 130kgf |
| Max Rider Weight | 120kg |
| Max Tire Pressure | 60psi |
| Application | Mountain Bike, Cross Country, Trail |
| Tire Size | 1.9-2.3" |
| 29" Specs | |
| Weight | 355 +/- 10g |
| ERD | 598mm ( Does not include the nipple ) |
| 27.5" Specs | |
| Weight | 340 +/- 10g |
| ERD | 560mm ( Does not include the nipple ) |
